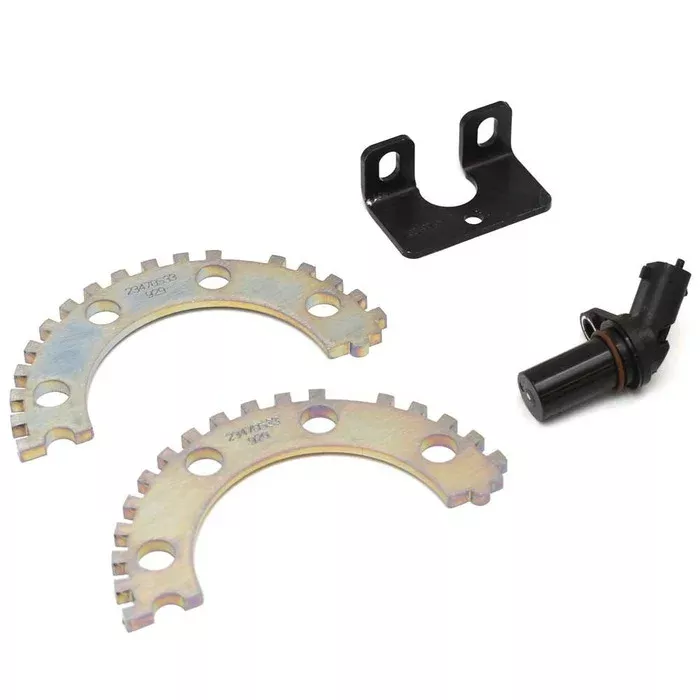

Boat part number 1107986 is a new low speed kit for HS63A model Volvo Penta engine reverse gear, part number 23473228 .
This kit contains the following:
- (1) 3849345- Bracket
- (1) 21133388- Kit Loose Hardware
- (1) 21426987- Sensor
- (2) 23470533- Sensor Wheel
- (1) 7749436- Assembly Instructions
Bracket
This bracket is constructed out of steel, and measures apporximately 2 1/2″ L x 1 3/8″ W x 1″ H overall. Features and approximate 7/8″ Dia. cutout. Mounts with (2) 5/16″ x 1/2″ holes set apart 1 5/8″ center to center and (1) 1/4″ Dia. hole.
Sensor
This sensor is constructed out of black plastic and measures approximately 2 5/8″ L x 1 1/2″ W x 1 1/2″ H overall. Features an approximate 7/8″ Dia. cutout. Mounts with (1) 1/4″ Dia. hole on bracket. Uses (1) 2-spade male connection.
Sensor Wheel
This set of 2 sensor wheel measures approximately 5 3/8″ Dia. x 1/4″ H overall when together. Features a 3 1/2″ ID .
Specifications:
- Part Manufacturer: Volvo Penta
- Part Number: 23473228
- Cutout: 7/8″ Dia.
- Mounts: (2) 5/16″ x 1/2″ holes set apart 1 5/8″ | (1) 1/4″ Dia. hole
- Connections: (1) 2-spade male
- Engine Fitment: HS63A Reverse Gear
