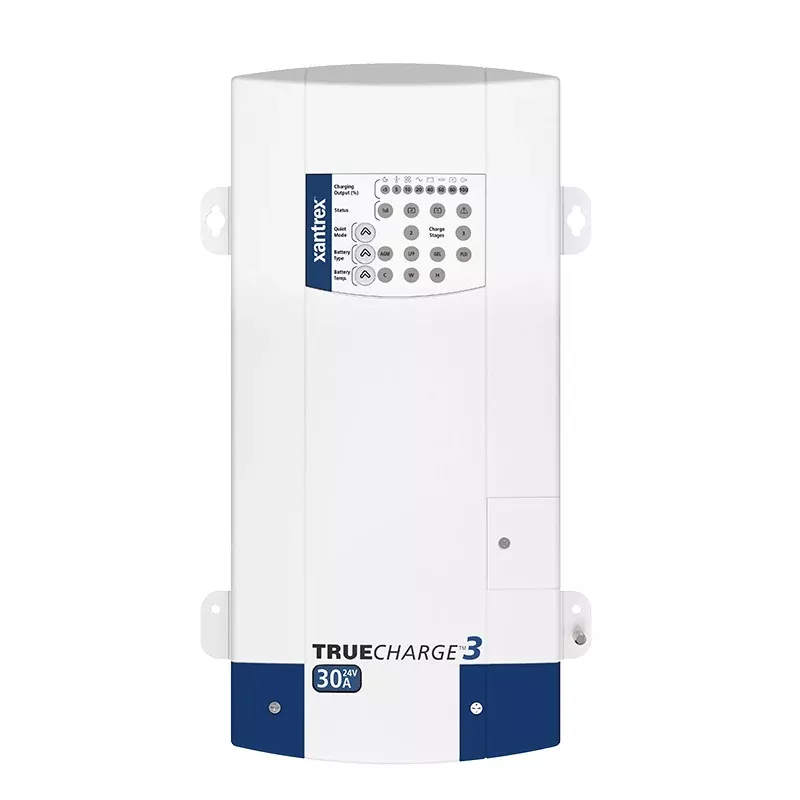

The new Xantrex Truecharge3 30 Amp 3 Bank 24V Battery Charger (804-2430-10)fromNomadic Supply Company® leads the industry with a small footprint and ultra-compact design.In addition to meeting global safety and regulatory standards, the Xantrex Truecharge3 30 Amp 3 Bank 24V Battery Charger (804-2430-10) features low electrical interference and efficient, power factor-corrected multistage charging. They can be mounted in multiple positions thanks to their inherent drip-proof design characteristics. Unlike its predecessors, TRUEcharge3 is Lithium-ion battery compatible.Designed for recreational and commercial applications worldwide, the Xantrex Truecharge3 30 Amp 3 Bank 24V Battery Charger (804-2430-10) accepts 90—265 Vac, 47—63 Hz which makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display of the TRUEcharge3 12 V models can be augmented with an optional remote panel. Each model has built-in protection against surges and spikes on the AC power line.
Xantrex Truecharge3 30 Amp 3 Bank 24V Battery Charger (804-2430-10) Features:
- Lithium-ion battery compatible
- Automatic 3-stage battery charger
- Parallel stack up to 2 chargers
- Circuit breaker protection
Xantrex Truecharge3 30 Amp 3 Bank 24V Battery Charger (804-2430-10) Specifications:
| Output current (nominal) | 30 A |
| Charge | 28.4 — 31.0 Vdc |
| Float | 26.8 — 27.6 Vdc |
| Equalize | 32 Vdc |
| DC output connections | Three |
| AC input voltage | 90-265; Vac 47-63 Hz; 120 Vac, 230 Vac, 240 Vac nominal |
| Temperature compensation | Three settings |
| Charger Efficiency | Greater Than 80 percent |
| Battery type | Gel, Flooded, AGM, Lithium-Ion |
| Minimum recommended battery bank size | 60 Ah |
| Operating temperature | 0—60 degrees C (32—140 degrees F) |
| Storage temperature | -40—80 degrees C (-40—176 degrees F) |
| Battery connection | Three positive terminals, One negative terminal |
| Weight | 9.9 lb (4.5 kg) |
| Warranty | Two year |
| Dimensions | 3.5 x 6.7 x 13.4in (90 x 170 x 340 mm) |
